Question 17 of 39

CEED 2021 · Part A · Q17

Time left05:00
ObservationMSQ · pick all that apply+3 / −0.2

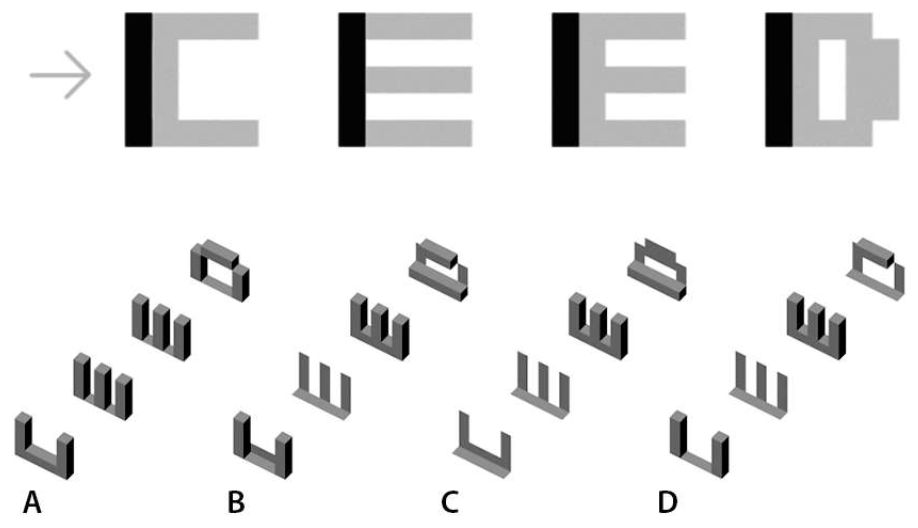

The top view of four objects, resting on a planar ground, is shown in black colour in the given figure. When light falls on them at an angle of 45 degrees from the ground in the direction marked in the image, corresponding shadows are formed on the ground. Which option(s) depict(s) the correct arrangement of the objects?

Figure for question 17
Choose all correct options
