Question 45 of 67

UCEED 2023 · Part A · Q45

Time left05:00
Spatial ReasoningMCQ+3 / −0.71

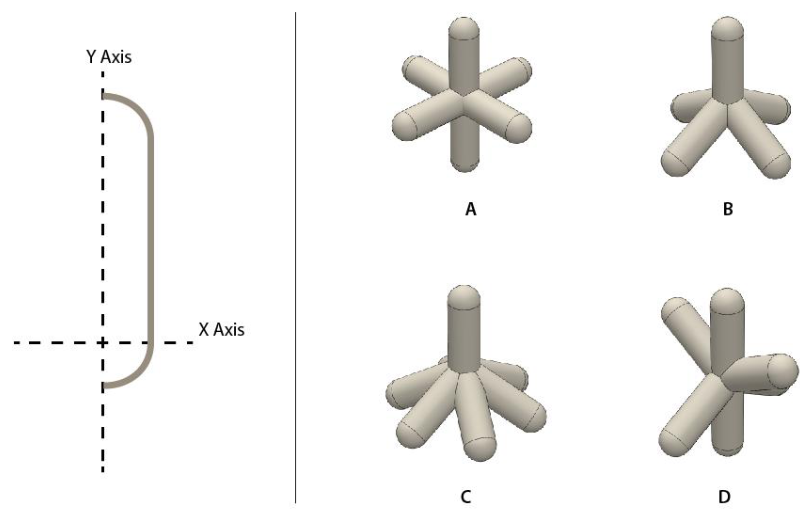

The following operations are done on the curve shown in the figure. 1. The curve is revolved 360 degrees around the Y axis. 2. The resulting form is then cloned twice around the X axis at 120 degrees to each other. 3. The resulting form is then cloned once about the Y axis at 90 degrees. What is the resulting 3D form?

Figure for question 45
Choose one option
