Question 43 of 68

UCEED 2020 · Part A · Q43

Time left05:00
Analytical ReasoningMCQ+3 / −0.71

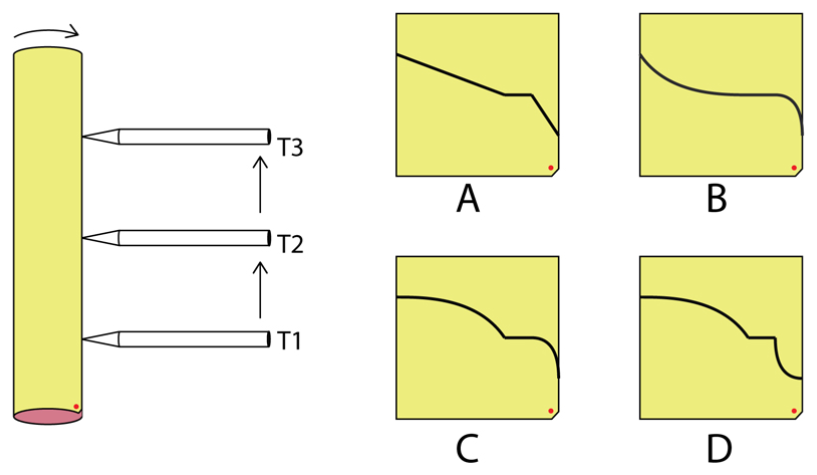

A rolled yellow paper cylinder is rotating clockwise direction at a constant rate of 1 revolution / 60 seconds. A pencil is touching the paper cylinder and is moving from T1 to T2 in 10 seconds and stops for 10 seconds. Then it moves to T3 in next 40 seconds (total time=60 seconds) as shown in figure 2. What would be the graph on paper when it is unrolled?

Figure for question 43
Choose one option
