Question 38 of 42

CEED 2026 · Part A · Q40

Time left05:00
Spatial ReasoningMCQ+3 / −0.5

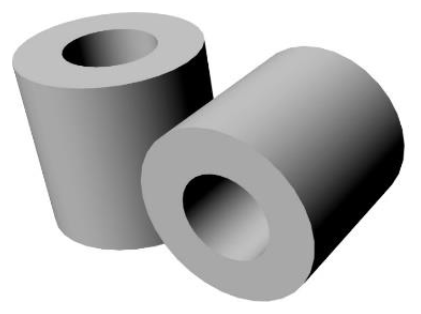

Perspective view of two identical hollow cylinders is shown below. Assume the outer diameter and length of each cylinder are equal. The two cylinders intersect each other at 90 degrees to form a union, such that their centroids (centre of axis) coincide. How many visible surfaces will the resultant union have?

Figure for question 40
Choose one option
