Question 51 of 57

UCEED 2026 · Part A · Q51

Time left05:00
Analytical ReasoningMCQ+3 / −0.71

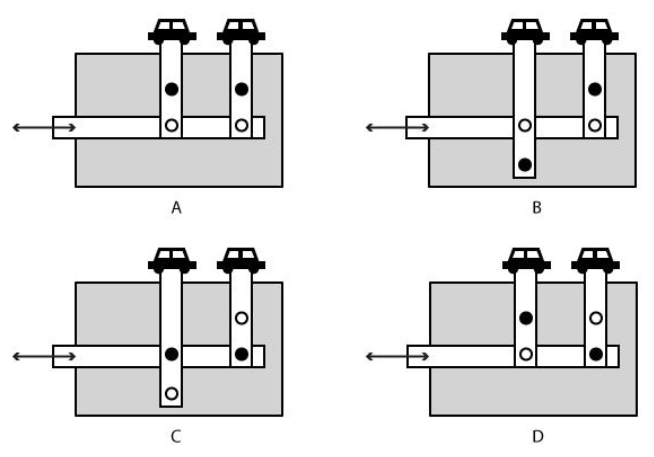

A toy is made with cardboard and rivets. As shown below, the two car cut-outs are attached on top of the parallel cardboard strips which should move when the child pushes or pulls the horizontal cardboard strip. Different linkage mechanisms are made with cardboard strips (rectangles) and connector pivots (circles). Black circles are fixed pivots (attached to the grey base) and white circles are moving pivots (not attached to the grey base). Which option will show a collision between the two cars?

Figure for question 51
Choose one option
