Question 29 of 40

CEED 2022 · Part A · Q30

Time left05:00
Analytical ReasoningMCQ+2 / −0.5

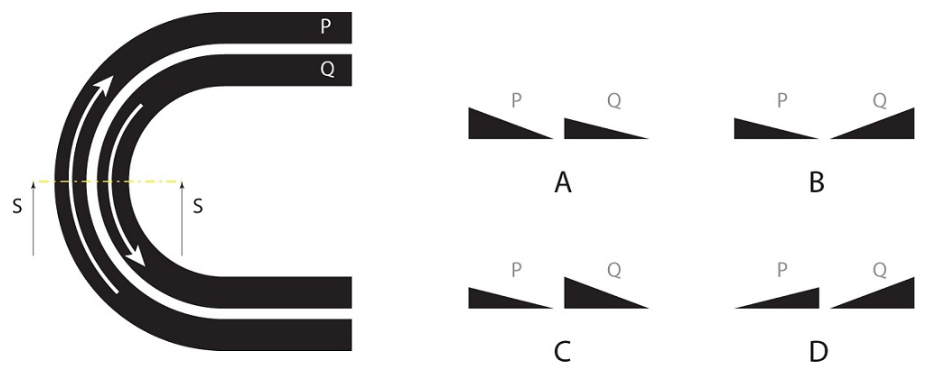

Roads are generally made with an angle on the curvatures to counter the centrifugal force on vehicles moving with speed. This is called ‘Banking of Road’. Figure shows two one-way roads P and Q from top view. If the maximum safe speed limit is same for both the roads, which option shows the schematic cross section of P and Q at the position SS?

Figure for question 30
Choose one option
