Question 54 of 67

UCEED 2021 · Part A · Q55

Time left05:00
Spatial ReasoningMCQ+3 / −0.71

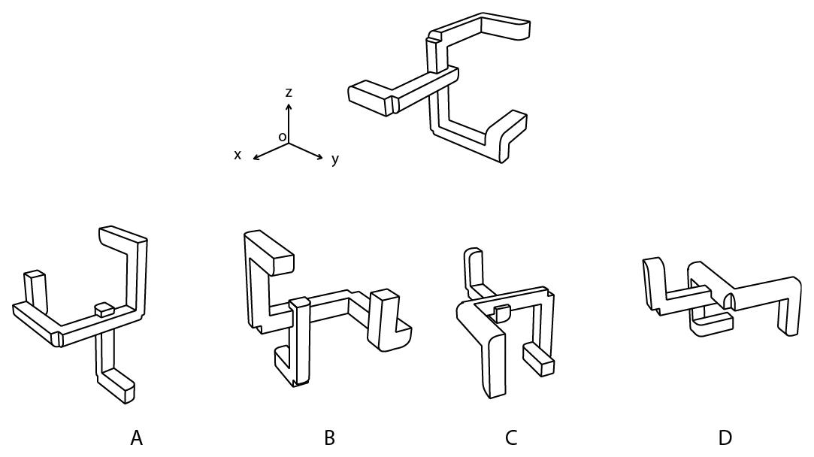

Perspective view of an object is shown. The object is rotated with respect to the fixed coordinate system as indicated: 90 degrees clockwise about x-axis, 90 degrees anti clockwise about y-axis, 90 degrees anticlockwise about z-axis. All rotations are when viewed from a point on the positive axis towards the origin. Which one of the following perspective view options will be the result of the rotations?

Figure for question 55
Choose one option
