Question 51 of 56

UCEED 2024 · Part A · Q52

Time left05:00
Spatial ReasoningMCQ+3 / −0.71

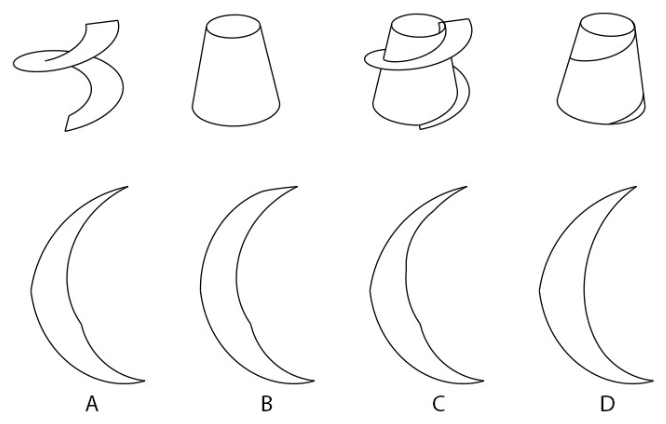

A hollow paper cone is cut by a spiral blade. The blade, the cone, the position of the cone and blade, and the line along which it gets cut are shown below. The surface of the cone is then unwrapped on a flat surface. Which option shows the unwrapped surface?

Figure for question 52
Choose one option
