Question 12 of 85

UCEED 2019 · Part A · Q12

Time left05:00
Numerical ReasoningNAT+3 / no negative

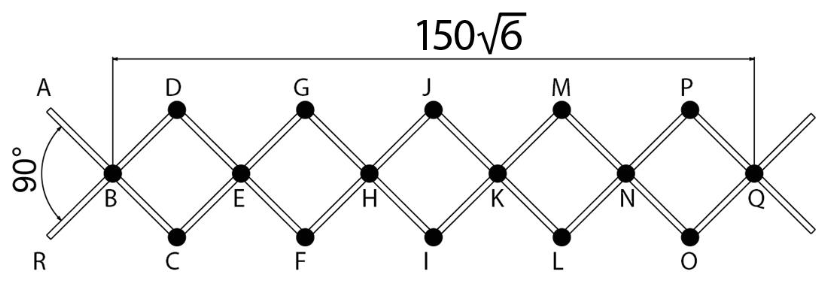

The figure below shows a hinged structure made up of 12 sticks. The structure can be elongated and compressed by changing the angle ABR. As shown in the figure, the distance between B and Q is 150√6 (one hundred and fifty times root six) units when the angle ABR is 90 degrees. What will this distance be when the angle ABR is changed to 60 degrees?

Figure for question 12
